Position the petals independently.
Each petal is independently adjustable, with adjustable focusing. Review the arm and joint limits against your room layout.
MORBROS · SURGICAL LIGHT
Neom.
Position each petal.
Choose your configuration.
Neom 4 four-petal ceiling configuration shown.
Neom 4 ceiling configuration pictured. Other petal counts and mounting arrangements differ.
Independently adjustable petals and adjustable focusing let you shape the lighting setup. Choose a petal count to see its illuminance and LED specifications.
Discuss on WhatsAppShare your preferred petal count, mounting and control requirements.
Choose a petal configurationManufactured by Morbros. Medicare Manage is your dealer and procurement contact.
Adjustable petalsIndependent petal positioning
12–30 cmLight-field size, all petal counts
3800–5200 KColour-temperature range
THE KEY DECISION FACTS
The essentials,
at a glance.
Values below apply to the selected petal count. Mounting and number of domes are separate choices.
Neom 3 specifications
- Illuminance, ±10%
- 140,000 lux
- Petals
- 3
- LEDs
- 57
- Colour rendering index
- 93 Ra, all petal counts
- Colour temperature
- 3800-5200 K
- Light field size
- 12-30 cm, all petal counts
Illuminance measurement distance: to confirm; not stated for Neom 3.
Neom 4 specifications
- Illuminance, ±10%
- 160,000 lux
- Petals
- 4
- LEDs
- 76
- Colour rendering index
- 93 Ra, all petal counts
- Colour temperature
- 3800-5200 K
- Light field size
- 12-30 cm, all petal counts
Illuminance measurement distance: to confirm; not stated for Neom 4.
Neom 5 specifications
- Illuminance, ±10%
- 180,000 lux
- Petals
- 5
- LEDs
- 95
- Colour rendering index
- 93 Ra, all petal counts
- Colour temperature
- 3800-5200 K
- Light field size
- 12-30 cm, all petal counts
Illuminance measurement distance: to confirm; not stated for Neom 5.
Neom 6 specifications
- Illuminance, ±10%
- 200,000 luxAt 1 metre
- Petals
- 6
- LEDs
- 114
- Colour rendering index
- 93 Ra, all petal counts
- Colour temperature
- 3800-5200 K
- Light field size
- 12-30 cm, all petal counts
Illuminance measurement distance: 1 metre.
DETAILS TO CONFIRM
Clarify these details Your Neom 4 configuration
Numerical dimming limits, mounting clearances, weight, power consumption and IP rating are not stated. Agree mounting and the number of domes for your selected petal count.
START WITH YOUR REQUIREMENTS
Adjust the petals.
Choose the controls.
Petal count, positioning and control choices define the configuration you are comparing.
Planning your OT?
Read the surgical-light guideCompare the selected configuration.
Illuminance and LED counts vary by petal count. The selector shows the values for Neom 3, 4, 5 or 6, with measurement-distance information alongside.
Recall your controller settings.
The standard membrane controller includes M1/M2 presets and an Endo button. A digital controller and battery backup are optional; dual-head wall control is also listed as optional.
A CLEAR QUOTATION STARTS HERE
Choose your configuration.
Know what’s included.
Select items to include in your WhatsApp enquiry. Optional and on-request items are labelled below.
Controls & package
Membrane controller with M1/M2 presets, Endo, on/off and an LED-dot intensity indicator is standard.
Wooden packing
Wooden packing is included in every quotation from Medicare Manage.
The complete setup
Specify petal count, number of domes, mounting and optional controls. Triple ceiling configuration is available on request.
Inclusion, availability, ordered functionality and pricing need confirmation in your quotation.
Request an itemised quotationNo discussion items selected.
A CLEAR ROUTE TO SUPPORT
Know whom to contact.
Before you need help.
For equipment purchased through Medicare Manage, we respond to service requests within one hour, 24 hours a day, seven days a week.
Start with a one-minute video of the issue. We arrange a video call with your local biomedical technician or electrician to assess it.
Once the required replacement part is confirmed, delivery within India is guaranteed in 24–48 hours by air.
Covered warranty issues are handled without charge. Outside warranty, replacement parts are supplied at cost; this refers to the replacement part itself. Discuss warranty terms and any applicable freight or technician-visit charges before ordering.
Read the service process and termsSPEAK WITH OUR TEAM
Plan your OT setup
with our team.
Share your specialty, hospital location and planned opening date. You can start with a question or your room plan.
Medicare Manage teamDiscuss on WhatsApp
Equipment selection, configuration and quotations
Discuss on WhatsApp
Opens WhatsApp with a draft to review and send.
EXPLORE THE COMPLETE DETAILS
Full technical
specifications.
Read the conditions with the measurements.
Confirm the supplied configuration before ordering.
Neom 3
Light output
- Focusing
- Adjustable
- Light field size
- 12-30 cm, all petal counts
- Petals
- 3
- Illuminance, ±10%
- 140,000 lux
- Explicit stated distance
- To confirm
Colour and optics
- Optics
- One individual lens per LED; shadow-diluting arrangement
- LED colours
- White and yellow, double colour
- Colour rendering index
- 93 Ra, all petal counts
- Colour temperature
- 3800-5200 K
Controls
- Brightness control
- Capacitive touch panel; catalogue describes full-range dimming without numerical limits
- Standard controllerStandard
- Membrane controller with M1/M2 presets, Endo button, on/off and LED-dot intensity indicator
- Endoscopy support
- Dedicated preset lower-intensity Endo mode
- Dimming range
- To confirm
Installation and power
- Power supply
- 220 V / 50 Hz AC
- Number of domes
- Single, double and triple
- Installation
- Ceiling and mobile
- Petal counts
- 3, 4, 5 and 6
- Power consumption
- To confirm
- Mounting clearances
- To confirm
Build and maintenance
- LED brand
- OSRAM
- LED life
- >50,000 hours
- Housing
- Aluminium petal housing and heat sink
- Petal adjustment
- Independently adjustable petals
- Rotation
- 360° and smooth positioning, stated on the cover; exact joint limits require confirmation
- Light diameter
- 500 mm per head
- Ip rating
- To confirm
- Weight
- To confirm
- LEDs
- 57
Optional upgrades
- Digital controllerOptional
- Optional touch-slide LUX control with percentage markers, M1-M3 memories and EN key
- Dual-head wall controlOptional
- Optional wireless panel; independent Light A/Light B adjustment or SYNC output
- Battery backupOptional
- Optional
- Triple ceiling configurationOn request
- Available on request
Neom 4
Light output
- Focusing
- Adjustable
- Light field size
- 12-30 cm, all petal counts
- Petals
- 4
- Illuminance, ±10%
- 160,000 lux
- Explicit stated distance
- To confirm
Colour and optics
- Optics
- One individual lens per LED; shadow-diluting arrangement
- LED colours
- White and yellow, double colour
- Colour rendering index
- 93 Ra, all petal counts
- Colour temperature
- 3800-5200 K
Controls
- Brightness control
- Capacitive touch panel; catalogue describes full-range dimming without numerical limits
- Standard controllerStandard
- Membrane controller with M1/M2 presets, Endo button, on/off and LED-dot intensity indicator
- Endoscopy support
- Dedicated preset lower-intensity Endo mode
- Dimming range
- To confirm
Installation and power
- Power supply
- 220 V / 50 Hz AC
- Number of domes
- Single, double and triple
- Installation
- Ceiling and mobile
- Petal counts
- 3, 4, 5 and 6
- Power consumption
- To confirm
- Mounting clearances
- To confirm
Build and maintenance
- LED brand
- OSRAM
- LED life
- >50,000 hours
- Housing
- Aluminium petal housing and heat sink
- Petal adjustment
- Independently adjustable petals
- Rotation
- 360° and smooth positioning, stated on the cover; exact joint limits require confirmation
- Light diameter
- 500 mm per head
- Ip rating
- To confirm
- Weight
- To confirm
- LEDs
- 76
Optional upgrades
- Digital controllerOptional
- Optional touch-slide LUX control with percentage markers, M1-M3 memories and EN key
- Dual-head wall controlOptional
- Optional wireless panel; independent Light A/Light B adjustment or SYNC output
- Battery backupOptional
- Optional
- Triple ceiling configurationOn request
- Available on request
Neom 5
Light output
- Focusing
- Adjustable
- Light field size
- 12-30 cm, all petal counts
- Petals
- 5
- Illuminance, ±10%
- 180,000 lux
- Explicit stated distance
- To confirm
Colour and optics
- Optics
- One individual lens per LED; shadow-diluting arrangement
- LED colours
- White and yellow, double colour
- Colour rendering index
- 93 Ra, all petal counts
- Colour temperature
- 3800-5200 K
Controls
- Brightness control
- Capacitive touch panel; catalogue describes full-range dimming without numerical limits
- Standard controllerStandard
- Membrane controller with M1/M2 presets, Endo button, on/off and LED-dot intensity indicator
- Endoscopy support
- Dedicated preset lower-intensity Endo mode
- Dimming range
- To confirm
Installation and power
- Power supply
- 220 V / 50 Hz AC
- Number of domes
- Single, double and triple
- Installation
- Ceiling and mobile
- Petal counts
- 3, 4, 5 and 6
- Power consumption
- To confirm
- Mounting clearances
- To confirm
Build and maintenance
- LED brand
- OSRAM
- LED life
- >50,000 hours
- Housing
- Aluminium petal housing and heat sink
- Petal adjustment
- Independently adjustable petals
- Rotation
- 360° and smooth positioning, stated on the cover; exact joint limits require confirmation
- Light diameter
- 500 mm per head
- Ip rating
- To confirm
- Weight
- To confirm
- LEDs
- 95
Optional upgrades
- Digital controllerOptional
- Optional touch-slide LUX control with percentage markers, M1-M3 memories and EN key
- Dual-head wall controlOptional
- Optional wireless panel; independent Light A/Light B adjustment or SYNC output
- Battery backupOptional
- Optional
- Triple ceiling configurationOn request
- Available on request

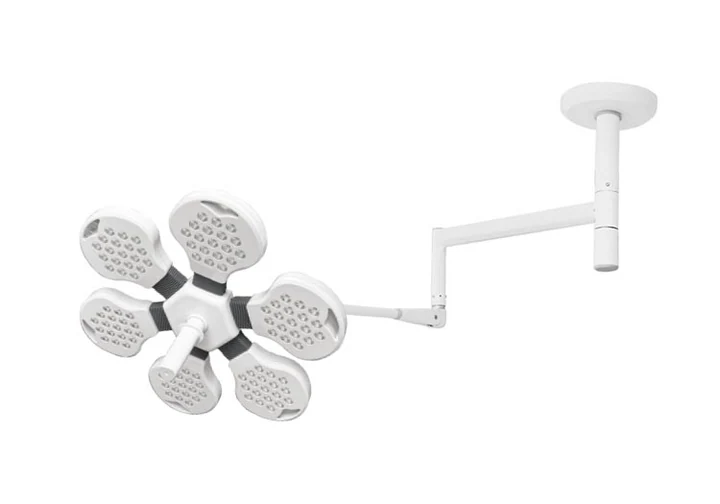

Neom 6
Light output
- Focusing
- Adjustable
- Light field size
- 12-30 cm, all petal counts
- Petals
- 6
- Illuminance, ±10%
- 200,000 luxAt 1 metre
- Explicit stated distance
- 1 metre
Colour and optics
- Optics
- One individual lens per LED; shadow-diluting arrangement
- LED colours
- White and yellow, double colour
- Colour rendering index
- 93 Ra, all petal counts
- Colour temperature
- 3800-5200 K
Controls
- Brightness control
- Capacitive touch panel; catalogue describes full-range dimming without numerical limits
- Standard controllerStandard
- Membrane controller with M1/M2 presets, Endo button, on/off and LED-dot intensity indicator
- Endoscopy support
- Dedicated preset lower-intensity Endo mode
- Dimming range
- To confirm
Installation and power
- Power supply
- 220 V / 50 Hz AC
- Number of domes
- Single, double and triple
- Installation
- Ceiling and mobile
- Petal counts
- 3, 4, 5 and 6
- Power consumption
- To confirm
- Mounting clearances
- To confirm
Build and maintenance
- LED brand
- OSRAM
- LED life
- >50,000 hours
- Housing
- Aluminium petal housing and heat sink
- Petal adjustment
- Independently adjustable petals
- Rotation
- 360° and smooth positioning, stated on the cover; exact joint limits require confirmation
- Light diameter
- 500 mm per head
- Ip rating
- To confirm
- Weight
- To confirm
- LEDs
- 114
Optional upgrades
- Digital controllerOptional
- Optional touch-slide LUX control with percentage markers, M1-M3 memories and EN key
- Dual-head wall controlOptional
- Optional wireless panel; independent Light A/Light B adjustment or SYNC output
- Battery backupOptional
- Optional
- Triple ceiling configurationOn request
- Available on request
Source: Morbros Neom catalogue and variant-specific public specifications. Output and LED counts depend on the selected petal count. Confirm suitability for your intended procedures and equipment before ordering.
