Set your working height.
The standard height range is 700–950 mm without the mattress. Compare it with your working position and planned accessories; ultra-low height is an optional upgrade.

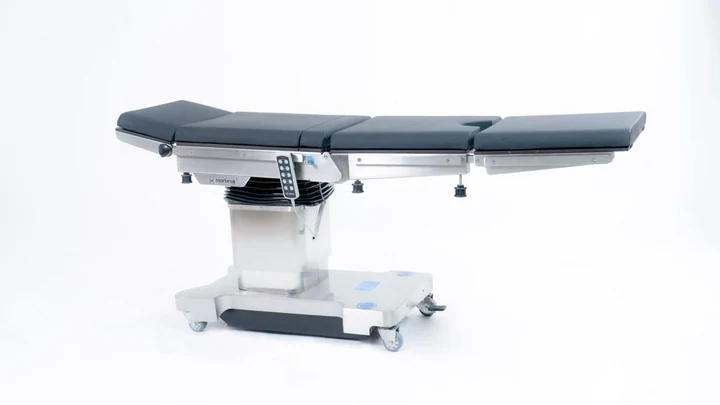

MORBROS · OPERATING TABLE
Healex 04.
Four controlled movements.
Options for your working setup.
Manufacturer product reference. Supplied configuration and illustrated accessories to confirm.
Adjust height, Trendelenburg/reverse, lateral tilt and the back rest with the standard wired remote. The five-section top is radiolucent and C-arm compatible.
Discuss on WhatsAppShare your specialty, preferred working height and imaging requirements.
Explore the specificationsManufactured by Morbros. Medicare Manage is your dealer and procurement contact.
700–950 mmHeight range, without mattress
200 kgWith balanced centre of gravity
4 movementsControlled by the wired hand remote
START WITH YOUR REQUIREMENTS
Four movements.
A clear starting point.
Start with the standard table, then choose the upgrades your setup requires.
Planning your OT?
Read the operating-table guidePlan imaging access.
The five-section top is radiolucent and C-arm compatible. A sliding tabletop is optional, so include that choice when planning your imaging setup.
Choose your control points.
The standard wired remote controls four movements and provides single-touch zero return. Wireless control, a nurse panel and the EL emergency panel are optional.
THE KEY DECISION FACTS
The essentials,
at a glance.
Manufacturer catalogue specifications
- Height rangeStandard
- 700-950 mmWithout mattress
- Load capacityStandard
- 200 kg with balanced centre of gravity
- Table topStandard
- Five-section, radiolucent and C-arm compatible
- RemoteStandard
- Wired four-function hand remote
- Sliding table topOptional
- Optional; slide travel unspecified.
- Wheel lockingStandard
- Manual, single lever engaged by foot
DETAILS TO CONFIRM
Clarify these details For your configuration
The optional ultra-low minimum, slide travel and backup runtime are not stated. EL emergency-panel functions depend on the ordered configuration.
A CLEAR QUOTATION STARTS HERE
Choose your configuration.
Know what’s included.
Select items to include in your WhatsApp enquiry. Optional and on-request items are labelled below.
Controls & package
Wired four-function remote, single-touch zero return and foot-engaged wheel locking are standard.
Wooden packing
Wooden packing is included in every quotation from Medicare Manage.
The complete setup
List accessories, optional controls, installation, handover, training and warranty terms in the quotation.
Inclusion, availability, ordered functionality and pricing need confirmation in your quotation.
Request an itemised quotationNo discussion items selected.
A CLEAR ROUTE TO SUPPORT
Know whom to contact.
Before you need help.
For equipment purchased through Medicare Manage, we respond to service requests within one hour, 24 hours a day, seven days a week.
Start with a one-minute video of the issue. We arrange a video call with your local biomedical technician or electrician to assess it.
Once the required replacement part is confirmed, delivery within India is guaranteed in 24–48 hours by air.
Covered warranty issues are handled without charge. Outside warranty, replacement parts are supplied at cost; this refers to the replacement part itself. Discuss warranty terms and any applicable freight or technician-visit charges before ordering.
Read the service process and termsSPEAK WITH OUR TEAM
Plan your OT setup
with our team.
Share your specialty, hospital location and planned opening date. You can start with a question or your room plan.
Medicare Manage teamDiscuss on WhatsApp
Equipment selection, configuration and quotations
Discuss on WhatsApp
Opens WhatsApp with a draft to review and send.
EXPLORE THE COMPLETE DETAILS
Full technical
specifications.
Read the conditions with the measurements.
Confirm the supplied configuration before ordering.
Dimensions and capacity
- Table lengthStandard
- 1985 mm
- Table widthStandard
- 540 mm
- Minimum height without mattressStandard
- 700 mm
- Maximum height without mattressStandard
- 950 mm
- Load capacityStandard
- 200 kg with balanced centre of gravity
- Ultra low height min
- To confirm
Positioning
- Kidney bridgeStandard
- 150 mm
- TrendelenburgStandard
- 25° up / 25° down
- Lateral tiltStandard
- 20° right / 20° left
- Back sectionStandard
- 75° up / 25° down
- Leg sectionStandard
- 20° up / 90° down
- Head sectionStandard
- 20° up / 90° down
- Head adjustmentStandard
- Gas spring, tool-free
Imaging and modularity
- Table topStandard
- Five-section, radiolucent and C-arm compatible
- Slide travel
- To confirm
Controls and power
- Wheel lockingStandard
- Manual, single lever engaged by foot
- RemoteStandard
- Wired four-function hand remote
- Movement activationStandard
- Sustained long press for positioning commands
- Zero positionStandard
- Single-touch return to home/zero position
- Four controlled movementsStandard
- Height, Trendelenburg/reverse, lateral tilt, back rest
- Backup runtime
- To confirm
Build and care
- Actuator noiseStandard
- <50 dB
- MattressStandard
- Anti-static high-density PU with seamless edges
- ConstructionStandard
- Compact stainless-steel base and integrated actuator column
Optional upgrades
- Ultra-low heightOptional
- Optional; revised minimum height to confirm.
- Sliding table topOptional
- Optional; slide travel unspecified.
- EL manual overrideOptional
- Keyed emergency panel with battery backup; described controls include height, Trendelenburg, lateral tilt, flex/reflex and top sliding. Final functionality depends on the ordered table configuration.
- Nurse panelOptional
- Additional control point with function locks, left/right arrows, M1/M2 memories and Zero button.
- Wireless remoteOptional
- Upgrade from the standard wired remote.
- Mattress colourOptional
- Customisation available.
- Laminated mattress finishOptional
- Optional finish described for cleaning and durability.
Source: Morbros Healex 04 catalogue: technical specifications and optional-equipment details. Confirm suitability for your intended procedures and equipment before ordering.
